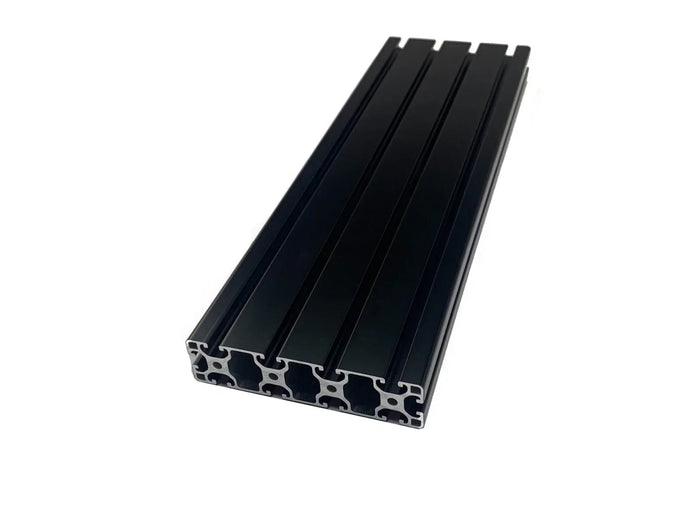

SimXPro 40x160 Aluminium Profile – Black

Maximum Strength for High-End Sim Racing Builds

The SimXPro 40x160 Aluminium Profile is the ultimate choice for sim racers who demand extreme rigidity and durability. Designed for heavy-duty applications, this profile is ideal for building or reinforcing high-performance cockpits, especially setups using Direct Drive wheelbases and hydraulic pedal systems.

With its extra-wide 40x160 design, it delivers superior stiffness and stability—perfect for serious sim racing.

Key Features

• Heavy-duty 40x160 aluminium profile
• Up to 20% stronger than standard profiles
• Premium matte black powder-coated finish (30% gloss)
• Up to 20x more scratch-resistant than anodized profiles
• Ideal for structural cockpit components and reinforcements
• Precision cut with tight tolerances

Built for Extreme Rigidity

The 40x160 profile is designed for the most demanding setups, offering:

• Maximum structural stiffness
• Minimal flex under extreme loads
• Stable performance with high-torque wheelbases

Perfect for:

• Main chassis frames
• Wheelbase mounting structures
• Pedal deck reinforcements
• Professional and DIY sim rigs

Premium Powder-Coated Finish

SimXPro’s black powder coating provides:

• Up to 20x better scratch resistance compared to anodized profiles
• A clean, matte black appearance
• Long-lasting protection and durability

⚠️ Note: Minor surface marks may occur due to cutting and transport.

Modular & Easy to Work With

As part of the 40-series (8 mm slot) system, this profile is:

• Compatible with a wide range of brackets and accessories
• Ideal for custom builds and modular upgrades
• Easy to assemble, modify, and expand

Precision & Quality

Each profile is:

• Professionally cut to size
• Delivered with a cutting tolerance of ±0.2%
• Carefully packaged for safe delivery

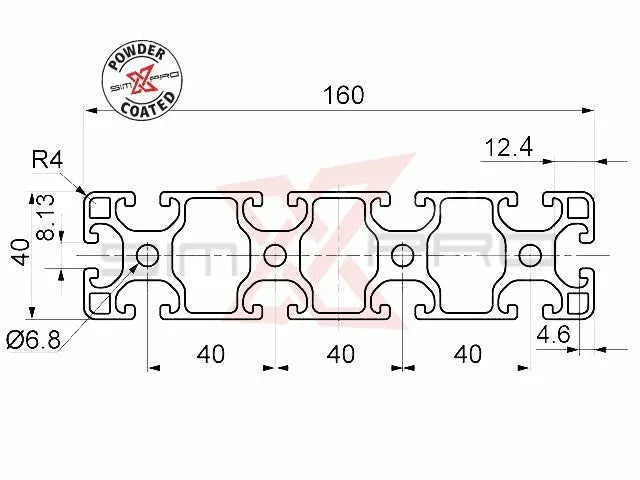

Technical Specifications

• Product Name: SimXPro 40x160 Aluminium Profile
• Dimensions: 40 × 160 mm
• Slot Type: 8 mm groove
• Weight: 5.70 kg per meter
• Finish: Matte black powder coating (30% gloss)
• Tolerance: ±0.2%
• Includes: Cutting service, powder coating, secure packaging

Build Without Limits

If you're building a no-compromise sim racing cockpit, the SimXPro 40x160 Profile provides the strength, precision, and durability needed for a truly professional setup.

Bigger. Stronger. Built for performance.
